Understanding The Travel Trailer Water System Diagram: A Comprehensive Guide

Navigating Vietnam in a travel trailer is an exciting adventure, and understanding your Travel Trailer Water System Diagram is essential for a smooth journey. SIXT.VN ensures you’re well-prepared for your travels. From consulting travel services to quality RV maintenance, knowing your water system inside and out makes all the difference.

Traveling in Vietnam offers unparalleled freedom and flexibility. SIXT.VN is here to help with comprehensive tourist consultation services, airport transfers, and hotel booking to make your travels go smoothly.

1. What is a Travel Trailer Water System Diagram, and Why is it Important?

A travel trailer water system diagram is a visual representation of how water flows through your RV. It helps you understand the different components and how they interact. Understanding your RV water system is very important, especially when traveling to locations like Vietnam, so you are able to perform maintenance, troubleshoot problems, and ensure a steady supply of clean water.

1.1 Why is it crucial to understand the diagram?

Understanding your RV water system diagram is not just a nice-to-have, it’s a necessity. It is akin to having a roadmap for your RV’s plumbing. According to the RV Industry Association (RVIA), a clear understanding of your RV’s systems can significantly reduce maintenance costs and improve your travel experience. Here’s why:

• Troubleshooting: When problems arise, such as leaks or pump failures, a diagram helps you quickly identify the source and understand the relationships between components.
• Maintenance: Regular maintenance, like sanitizing the water tank or winterizing the system, becomes easier and more efficient with a clear understanding of the layout.
• Modifications: If you plan to upgrade or modify your water system, the diagram provides a solid foundation for making informed decisions.
• Safety: Understanding the system helps ensure that all water is potable and safe for drinking, preventing health issues.

1.2 What are the key components typically shown in a travel trailer water system diagram?

The key components typically shown in a travel trailer water system diagram are fresh water tank, water pump, water filter, water heater, faucets, and city water inlet. Each component plays a crucial role in providing water to the fixtures in your RV.

Here’s a breakdown:

• Fresh Water Tank: This tank stores the potable water you’ll use when not connected to a city water source.
• Water Pump: The pump pressurizes the water, pushing it from the tank to your faucets and fixtures.
• Water Filter: This removes impurities and contaminants from the water, ensuring it’s safe to drink.
• Water Heater: Heats the water for showers, sinks, and other hot water needs.
• Faucets and Fixtures: These are the points where you access the water, including sinks, showers, and toilets.
• City Water Inlet: This allows you to connect directly to an external water source, bypassing the fresh water tank.
• Piping and Tubing: These connect all the components, carrying water throughout the system.
• Low Point Drains: Used to drain the system for winterization or maintenance.
• Pressure Regulator: Protects the system from high-pressure city water sources.
• Check Valves: Prevent backflow, ensuring water moves in the correct direction.

1.3 How does the diagram help in identifying potential issues early on?

The diagram helps in identifying potential issues early on by providing a clear overview of the entire system. This allows you to spot unusual conditions or inefficiencies that may indicate developing problems.

For instance:

• Leaks: By knowing the layout, you can quickly trace the source of a leak and assess the extent of the damage.
• Pressure Problems: A diagram helps you check the pump, regulator, and valves to diagnose pressure issues.
• Clogging: Understanding the filter placement allows you to inspect and replace it regularly, preventing clogs.
• Component Failure: Identifying the exact location of components, like the water pump or heater, makes troubleshooting and repairs easier.

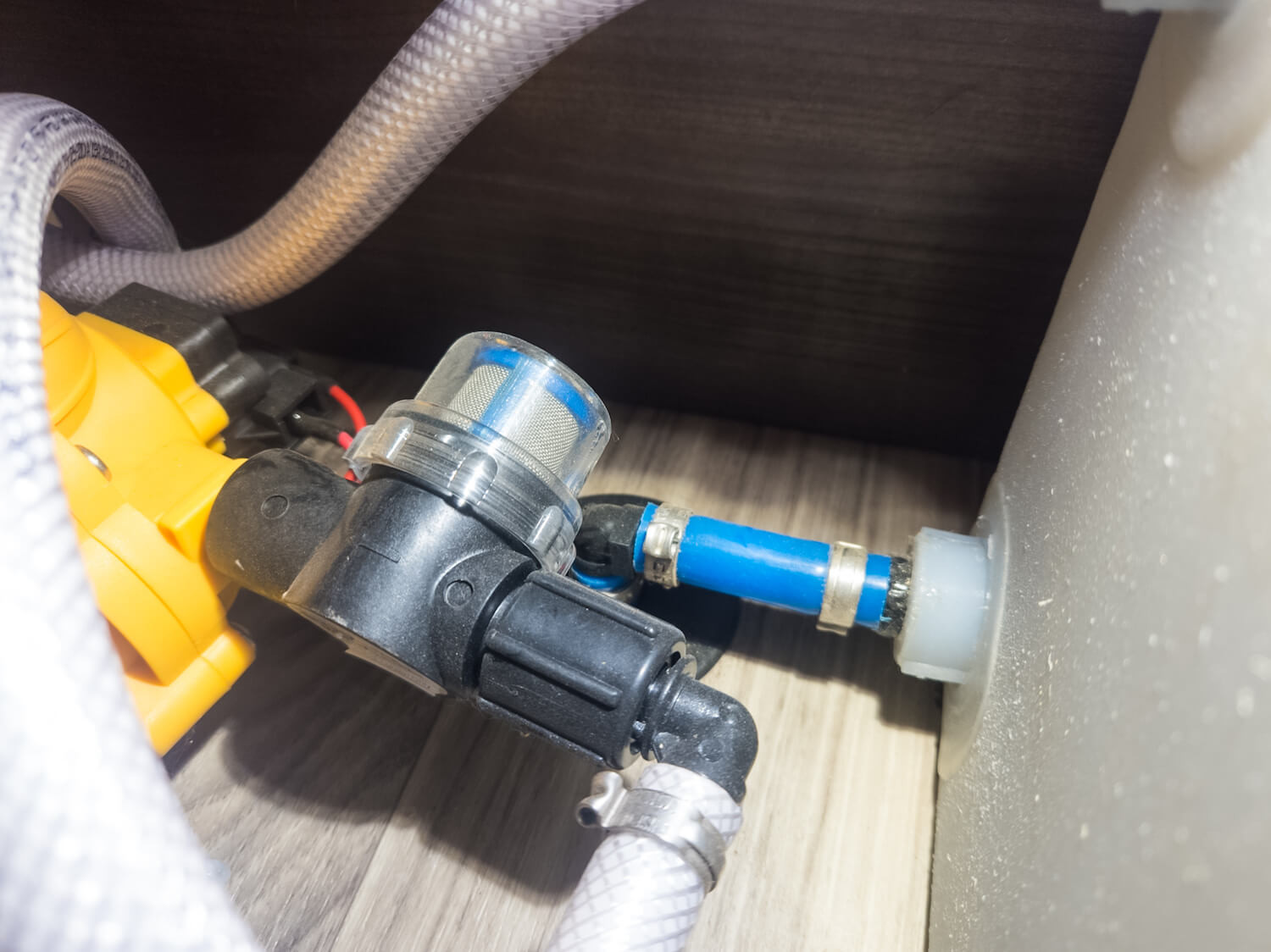

RV Water System Diagram

2. Step-by-Step Guide to Reading a Travel Trailer Water System Diagram

Reading a travel trailer water system diagram might seem daunting at first, but it’s quite manageable if you approach it systematically. Understanding the symbols, tracing the water flow, and identifying components are key.

2.1 Understanding common symbols and notations

Understanding common symbols and notations is important to correctly interpreting the diagram. Symbols represent different components and notations provide additional information about their specifications.

Common Symbols include:

2.2 Tracing the water flow from source to fixtures

Tracing the water flow is a critical skill for understanding how your RV water system works. It involves following the path of water from its source—either the fresh water tank or a city water connection—to the various fixtures in your RV, such as faucets, showers, and toilets. This process helps you understand the sequence of components and their functions.

Here’s a step-by-step guide to tracing water flow:

1. Identify the Water Source:

   • Fresh Water Tank: Locate the fresh water tank on the diagram. Water flow starts here when you’re using your onboard water supply.
   • City Water Inlet: Find the city water inlet, which allows you to connect to an external water source.

2. Follow the Piping:

   • Trace the lines (pipes or tubing) that originate from the water source. Note the direction of the arrows, which indicate the water flow direction.
   • Pay attention to any valves along the way. These valves control the flow and can direct water to different parts of the system.

3. Identify Key Components:

   • Water Pump: If starting from the fresh water tank, the first major component is usually the water pump. The pump pressurizes the water, pushing it through the system.
   • Water Filter: The water typically passes through a filter to remove sediment and impurities.
   • Pressure Regulator: If starting from the city water inlet, the water passes through a pressure regulator to reduce the incoming pressure to a safe level for your RV’s plumbing.
   • Water Heater: From the filter (or regulator), water may flow to the water heater for hot water supply.

4. Observe Diverters and Valves:

   • Diverter Valves: These valves split the water flow, sending it to different areas. For example, a diverter valve might send water to the water heater or bypass it for winterization.
   • Check Valves: Ensure water flows in one direction, preventing backflow.

5. Trace to Fixtures:

   • Follow the lines to the various fixtures in your RV:
     • Kitchen Sink: Trace the lines to the hot and cold water faucets.
     • Bathroom Sink: Similar to the kitchen sink, trace lines to the bathroom faucet.
     • Shower: Follow the lines to the showerhead, noting any mixing valves that blend hot and cold water.
     • Toilet: Trace the water line to the toilet, which often includes a separate supply valve.

6. Note Drains and Outlets:

   • Low Point Drains: Identify the low point drains, which are used to empty the system for winterization or maintenance.
   • Outdoor Shower: If equipped, trace the lines to the outdoor shower fixture.

2.3 Identifying and understanding the function of each component in the system

Identifying and understanding the function of each component in the system is crucial for effective maintenance and troubleshooting. Recognizing each part and knowing its role ensures you can address issues quickly and efficiently.

3. Common Issues and Troubleshooting Using the Diagram

Using the travel trailer water system diagram will help in troubleshooting common issues in your RV. By referring to the diagram, you can identify the cause and address the problem efficiently.

3.1 How to use the diagram to diagnose leaks and their sources

Using the diagram to diagnose leaks and their sources is a systematic approach that helps you pinpoint the exact location and cause of water leaks in your RV.

1. Identify the Leak Location:
   • Start by identifying where the leak is occurring. Look for signs of water damage, such as dampness, stains, or dripping water.
2. Consult the Diagram:
   • Refer to your RV’s water system diagram to understand the components and piping in the area of the leak.
3. Trace the Water Flow:
   • Trace the water flow from the nearest water source (fresh water tank or city water inlet) to the leak location. Follow the pipes and identify all components along the way.
4. Inspect Connections and Fittings:
   • Check all connections, fittings, and joints in the area for signs of leaks. Look for water droplets, corrosion, or loose connections.
5. Check Components:
   • Inspect the components in the area, such as the water pump, filter, water heater, and faucets, for any signs of damage or leaks.
   • Water Pump: Look for leaks around the pump housing or connections.
   • Water Filter: Check the filter housing and connections for cracks or leaks.
   • Water Heater: Inspect the tank, connections, and pressure relief valve for leaks.
   • Faucets: Check around the base of the faucet and the connections underneath the sink.
6. Test the System:
   • Turn on the water pump or connect to city water to pressurize the system.
   • Carefully observe the area around the leak to pinpoint the exact source.
7. Isolate the Problem:
   • If the leak is coming from a specific component, try to isolate it by shutting off any valves that control water flow to that component.
   • If the leak stops, you’ve likely found the source.

3.2 Troubleshooting low water pressure problems

Troubleshooting low water pressure problems can be systematically addressed using your RV’s water system diagram. By following these steps, you can identify the cause of the low pressure and take appropriate corrective actions.

1. Check the Water Source:
   • Fresh Water Tank: Ensure the tank is full and the water pump is turned on. If the tank is low, refill it. If the pump isn’t running, check the power supply and fuses.
   • City Water Inlet: Make sure the hose is properly connected and the water supply is turned on. Check the pressure at the source.
2. Inspect the Pressure Regulator:
   • Locate the pressure regulator on the diagram. If you’re connected to city water, the regulator could be malfunctioning.
   • Ensure the regulator is set to the correct pressure (usually between 40-50 PSI). If it’s adjustable, try increasing the pressure slightly.
   • If the regulator is old or damaged, replace it.
3. Check the Water Filter:
   • Find the water filter on the diagram. A clogged filter can significantly reduce water pressure.
   • Remove the filter and inspect it for sediment and debris.
   • Clean or replace the filter as needed.
4. Inspect the Water Pump:
   • Locate the water pump on the diagram. If the pump is running but the pressure is low, there may be an issue with the pump itself.
   • Check the pump’s strainer for clogs. Clean it if necessary.
   • Listen for unusual noises from the pump, which could indicate a failing motor or internal damage.
5. Check for Leaks:
   • Consult the diagram to identify all pipes, connections, and fixtures in the system.
   • Inspect for leaks, especially at joints, fittings, and around the water pump and water heater.
   • Repair any leaks you find.
6. Inspect Valves:
   • Refer to the diagram to locate all valves in the system.
   • Ensure all valves are fully open. Partially closed valves can restrict water flow.
7. Flush the System:
   • Sediment or mineral buildup can restrict water flow. Flush the entire system to remove any blockages.
   • Open all faucets and showers and let the water run for several minutes.
8. Check the Accumulator Tank (if equipped):
   • Locate the accumulator tank on the diagram. This tank helps maintain consistent water pressure.
   • Check the air pressure in the tank using a tire pressure gauge. The pressure should be slightly below the pump’s cut-in pressure (usually around 30 PSI).
   • Adjust the air pressure as needed.

3.3 Identifying and resolving water pump issues

Identifying and resolving water pump issues is important for maintaining a functional water system in your RV. Common problems include the pump not turning on, running continuously, or producing low pressure.

1. Pump Not Turning On:

   • Check Power Supply: Use the diagram to locate the pump and trace its power supply.
     • Ensure the RV is connected to a power source or the battery is charged.
     • Check the fuse or circuit breaker for the water pump. Replace the fuse or reset the breaker if necessary.
   • Inspect the Switch:
     • Verify that the water pump switch is turned on.
     • Check the switch for damage or corrosion. Replace if needed.
   • Check Wiring:
     • Inspect the wiring connections to the pump for loose or corroded connections.
     • Use a multimeter to check for voltage at the pump terminals when the switch is on. If there’s no voltage, there’s a wiring issue.
   • Check the Pressure Switch:
     • The pressure switch senses the water pressure and tells the pump when to turn on and off.
     • If the switch is faulty, the pump won’t turn on. Use a multimeter to test the switch for continuity. Replace if necessary.

2. Pump Running Continuously:

   • Check for Leaks:
     • The most common cause of a pump running continuously is a leak in the system.
     • Inspect all faucets, connections, and pipes for leaks. Repair any leaks you find.
   • Check the Check Valve:
     • The check valve prevents water from flowing back into the fresh water tank. If it’s faulty, the pump will run continuously to maintain pressure.
     • Locate the check valve on the diagram. Clean or replace the valve if necessary.
   • Adjust the Pressure Switch:
     • The pressure switch may need adjustment. Refer to the pump’s manual for instructions on adjusting the switch.
   • Check the Accumulator Tank (if equipped):
     • Ensure the accumulator tank is properly pressurized.
     • Adjust the air pressure as needed.

3. Pump Producing Low Pressure:

   • Check the Water Source:
     • Ensure the fresh water tank is full.
     • If connected to city water, check the pressure at the source.
   • Inspect the Water Filter:
     • A clogged water filter can reduce water pressure.
     • Clean or replace the filter as needed.
   • Check the Pump Strainer:
     • The pump strainer prevents debris from entering the pump. A clogged strainer can reduce pump performance.
     • Clean the strainer.
   • Inspect the Pump:
     • The pump may be worn out or damaged.
     • Check the pump for any signs of damage.
     • Consider replacing the pump if it’s old or not performing well.

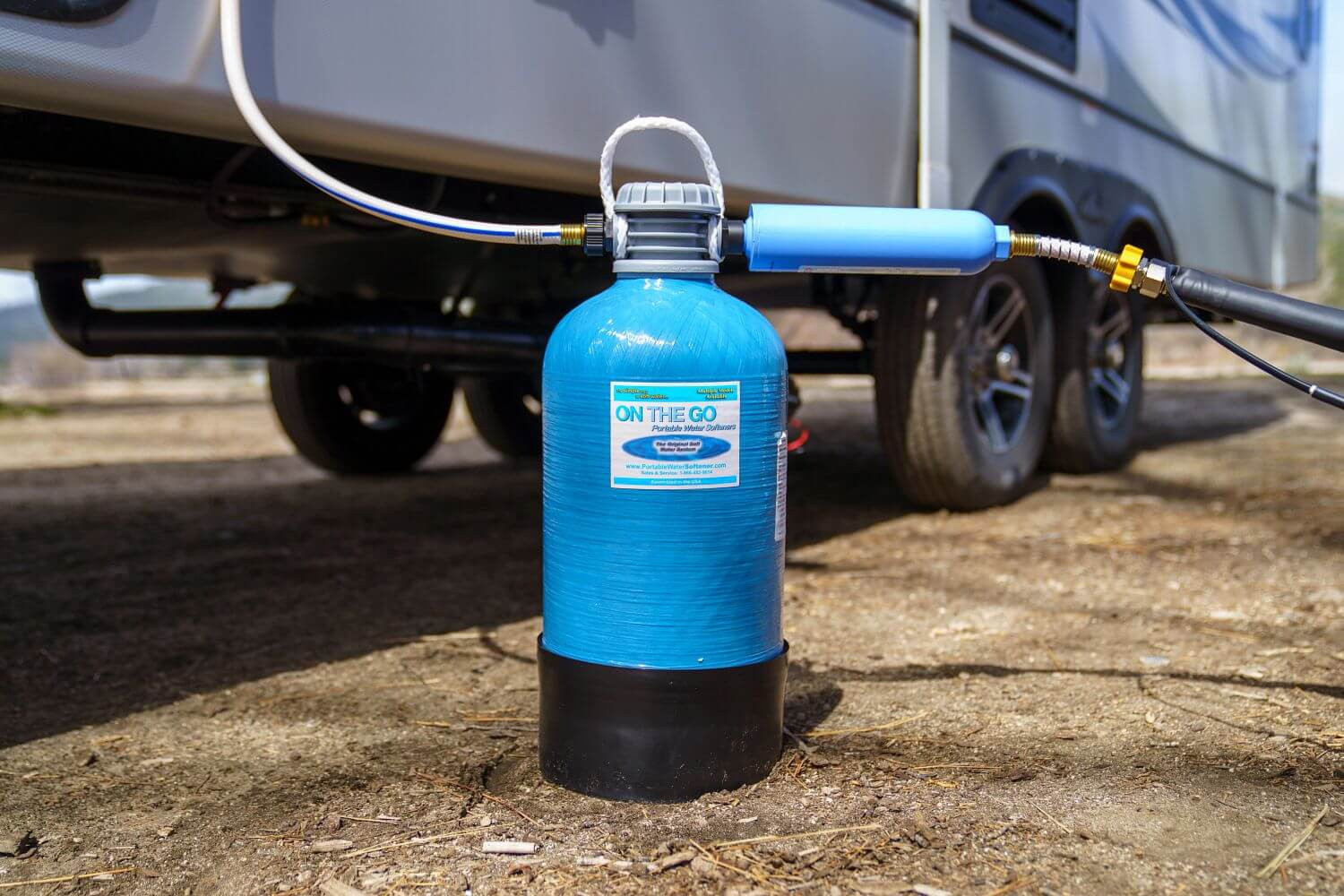

RV Water System Parts

4. Maintaining Your Travel Trailer Water System

Maintaining your travel trailer water system is essential for ensuring a safe and reliable water supply during your travels. Regular maintenance can prevent costly repairs and extend the life of your system.

4.1 Regular inspection checklist

Regularly inspecting your RV water system will catch small problems before they turn into costly headaches. Here is a checklist:

4.2 Winterizing your water system to prevent damage

Winterizing your water system is important to prevent damage from freezing temperatures. This process involves draining the system, adding antifreeze, and taking other steps to protect your pipes and components.

1. Gather Supplies:
   • RV antifreeze (non-toxic)
   • Water pump converter kit or tubing to connect to the pump
   • Wrench
   • Screwdriver
2. Drain the Water System:
   • Drain the Fresh Water Tank: Open the drain valve on the fresh water tank and allow it to drain completely.
   • Drain the Water Heater: Turn off the water heater and allow the water to cool. Remove the drain plug or anode rod and let the water drain completely. Replace the drain plug or anode rod with Teflon tape.
   • Open All Faucets and Fixtures: Open all hot and cold water faucets, including the shower and outdoor shower.
   • Flush the Toilet: Flush the toilet until no more water remains in the bowl.
   • Use Low Point Drains: Open the low point drain valves to drain any remaining water from the pipes.
3. Bypass the Water Heater:
   • Use the bypass valves to isolate the water heater. This prevents antifreeze from filling the water heater tank.
4. Install Water Pump Converter Kit:
   • Install a water pump converter kit. This allows you to draw antifreeze from a container directly into the water lines.
5. Pump Antifreeze Through the System:
   • Close all faucets and fixtures.
   • Turn on the water pump and pump antifreeze through the cold water lines until you see pink antifreeze coming out of each faucet. Then, close the faucet.
   • Repeat this process for all hot water lines, toilets, and showers.
6. Pour Antifreeze into Drains:
   • Pour antifreeze into each drain (sinks, shower, and toilet) to protect the P-traps from freezing.
7. Protect the Toilet:
   • Pour antifreeze into the toilet bowl and flush it to protect the toilet valve and plumbing.
8. Disconnect Water Hoses:
   • Disconnect any external water hoses and store them in a dry place.
9. Seal Openings:
   • Seal any openings, such as the city water inlet, to prevent pests from entering the system.

4.3 Sanitizing your water system for safe drinking water

Sanitizing your water system ensures that the water is safe to drink by eliminating bacteria and other contaminants. Regular sanitization is important, especially if you’re using your fresh water tank.

1. Gather Supplies:

   • Household bleach (unscented, 5-6% sodium hypochlorite)
   • Measuring cup
   • Funnel
   • Water hose

2. Calculate Bleach Amount:

   • Use 1/4 cup of bleach for every 15 gallons of tank capacity. For example, if your tank is 30 gallons, use 1/2 cup of bleach.

3. Prepare the Bleach Solution:

   • Mix the bleach with a gallon of water in a clean container.

4. Pour the Solution into the Fresh Water Tank:

   • Use a funnel to pour the bleach solution into the fresh water tank.

5. Fill the Fresh Water Tank:

   • Fill the fresh water tank completely with potable water.

6. Run the Water Through the System:

   • Turn on the water pump and open all faucets (hot and cold) one at a time.
   • Let the water run until you smell bleach at each faucet. Then, close the faucet.
   • Repeat this process for all faucets, showers, and toilets in the RV.

7. Let the Solution Sit:

   • Allow the bleach solution to sit in the water system for at least 4 hours, but preferably overnight.

8. Drain the System:

   • After the soaking period, drain the entire water system. Open all faucets and low point drains to allow the bleach solution to drain completely.

9. Flush the System:

   • Fill the fresh water tank with potable water and run the water through all faucets and fixtures until the bleach smell is gone.
   • You may need to repeat this process several times to completely remove the bleach smell.

10. Test the Water:

    • After flushing the system, test the water for any remaining chlorine. You can use a chlorine test kit to ensure the water is safe to drink.

RV Water Filter System

5. Upgrading Your Travel Trailer Water System

Upgrading your travel trailer water system can enhance your comfort and convenience while traveling. Upgrades range from improving water filtration to installing tankless water heaters.

5.1 Options for improving water filtration

Options for improving water filtration are important for ensuring clean and safe drinking water in your RV. The water quality can vary significantly between campgrounds and water sources, so upgrading your filtration system can provide peace of mind.

1. External Water Filter:

   • Connects to the city water inlet to filter water as it enters the RV.
   • Easy to install and replace.
   • Filters sediment, chlorine, and other impurities.
   • Pros: Simple installation, cost-effective.
   • Cons: Requires manual connection, may not filter as thoroughly as other systems.

2. Whole-House Water Filter:

   • Installed inline within the RV’s water system to filter all water entering the RV.
   • Filters sediment, chlorine, and other impurities.
   • Requires plumbing knowledge for installation.
   • Pros: Filters all water, longer filter life.
   • Cons: More complex installation, higher initial cost.

3. Dual-Canister Water Filter:

   • Uses two filter cartridges for multi-stage filtration.
   • The first cartridge filters sediment, and the second filters chlorine, taste, and odor.
   • Provides more thorough filtration than single-stage systems.
   • Pros: Enhanced filtration, improved water quality.
   • Cons: Higher cost, requires more space for installation.

4. Reverse Osmosis (RO) System:

   • Uses a semi-permeable membrane to remove contaminants from the water.
   • Removes a wide range of impurities, including dissolved salts, minerals, and chemicals.
   • Typically installed under the sink.
   • Pros: Provides the highest level of filtration, removes almost all contaminants.
   • Cons: High cost, requires professional installation, produces waste water.

5. UV Water Purifier:

   • Uses ultraviolet light to kill bacteria, viruses, and other microorganisms in the water.
   • Does not remove sediment or chemicals, so it’s often used in conjunction with other filtration systems.
   • Requires a power source to operate.
   • Pros: Effective at killing microorganisms, does not alter water taste or odor.
   • Cons: Does not remove sediment or chemicals, requires electricity.

6. Water Softener:

   • Reduces the mineral content in hard water, preventing scale buildup and improving the effectiveness of soaps and detergents.
   • Requires regeneration with salt.
   • Pros: Extends the life of plumbing fixtures, improves water quality for washing.
   • Cons: Requires regeneration, adds sodium to the water.

7. Faucet Filter:

   • Attaches directly to a faucet to filter water on demand.
   • Easy to install and replace.
   • Filters sediment, chlorine, and other impurities.
   • Pros: Convenient, affordable.
   • Cons: Only filters water at one faucet, requires frequent filter replacement.

5.2 Installing a tankless water heater for endless hot water

Installing a tankless water heater is a popular upgrade that provides on-demand hot water, eliminating the need to wait for a tank to heat up.

1. Choose a Tankless Water Heater:
   • Select a tankless water heater designed for RV use. These units are compact and energy-efficient.
   • Consider the BTU (British Thermal Unit) rating of the heater to ensure it can meet your hot water demands.
2. Gather Necessary Supplies:
   • Tankless water heater
   • Plumbing fittings (PEX or CPVC)
   • Gas line fittings (if using a propane heater)
   • Wiring (for electric heaters)
   • Screws and mounting hardware
   • Tools (pipe cutter, crimper, drill, screwdriver, multimeter)
3. Prepare the Installation Location:
   • Choose a location that is well-ventilated and has easy access to water and gas (if applicable) lines.
   • Ensure the location can support the weight of the heater.
4. Remove the Old Water Heater:
   • Turn off the water supply and disconnect the water lines from the old water heater.
   • If the old heater is electric, turn off the power and disconnect the wiring.
   • Remove the old water heater from its compartment.
5. Install the Tankless Water Heater:
   • Mount the tankless water heater in the designated location using the provided mounting hardware.
   • Ensure the heater is level and securely attached to the wall.
6. Connect the Plumbing:
   • Connect the cold water inlet and hot water outlet to the heater using appropriate plumbing fittings (PEX or CPVC).
   • Use Teflon tape on threaded connections to prevent leaks.
7. Connect the Gas Line (if applicable):
   • If using a propane heater, connect the gas line to the heater using appropriate gas line fittings.
   • Ensure the gas line is properly sealed and leak-tested.
8. Connect the Electrical Wiring (if applicable):
   • If using an electric heater, connect the electrical wiring to the heater according to the manufacturer
